DIY Simple On/Off Timer: Automate Your Home Appliances Easily

EFY Tested DIY Project

This simple on/off timer can control any household electrical device that needs to be switched on or off after a specific duration. It employs inexpensive components wired in an analogue circuit, providing extended timer duration without the complexity of digital ICs or microprocessor programming. Higher loads can be controlled by selecting higher current relays, switches, and wires, or external contactors. EFY lab tested the prototype on a breadboard, as shown in Fig. 1.

On/off Timer Circuit on Breadboard

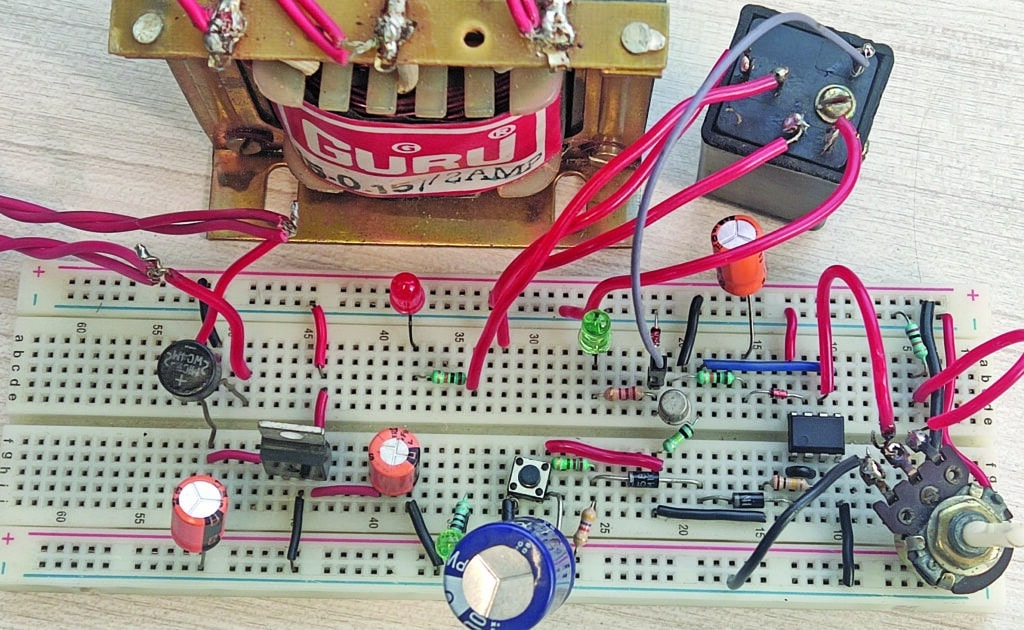

Fig. 1: On/Off Timer prototype on a breadboard
Parts List
Semiconductors:
IC1LM7812
IC2 (IC2A-IC2C)– LM358 op-amp
T1– BC547 npn transistor
BR1– DB107, 1A bridge rectifier
D1– 1N4007 rectifier diode
D2– 1N4148 signal diode
ZD1– 2.2V zener diode
LED1, LED2– 5mm LED
Resistors (all 1/4-watt, ±5% carbon):
R1– 47-kilo-ohm
R2– 2.2-mega-ohm
R3, R4– 100-kilo-ohm
R5, R6– 10-kilo-ohm
R7– 1-kilo-ohm
R8– 2.2-kilo-ohm
VR1– 100-kilo-ohm potmeter
Capacitors:
C1, C2, C4– 220µF, 25V electrolytic
C3– 4700µF, 25V electrolytic
Miscellaneous:
X1– 230V AC primary to 12V, 500mA secondary transformer
RL1– 12V, 10A SPDT relay
S1– Push-to-on switch
S2– 10A SPDT switch
CON1– 6A, 230V AC cord
CON2– 6A, 230V plug socket
Enclosure– Suitable-size PVC enclosure
PCB board– 10.2cm x 7.6cm (4”x3”) veroboard

Demo:

Video in English
Video in Hindi

DIY On/Off Timer – Circuit and Working

Please register to view this article or log in below. Tip: Please subscribe to EFY Prime to read the Prime articles.
